10-Port USB 3.2 Gen 2 Hub - 6 Type-A Ports, 4 Type-C Ports, & ESD Protection
Status: Available
Features
- Extensive Connections: Expand your host system’s peripheral capabilities with 4 USB Type-C ports and 6 additional USB Type-A ports.
- Reliable Protection: Keep your connections and peripherals safe with extensive ESD surge protection. Housed in a steel metal chassis, this hub is ready to tackle harsh industrial environments.

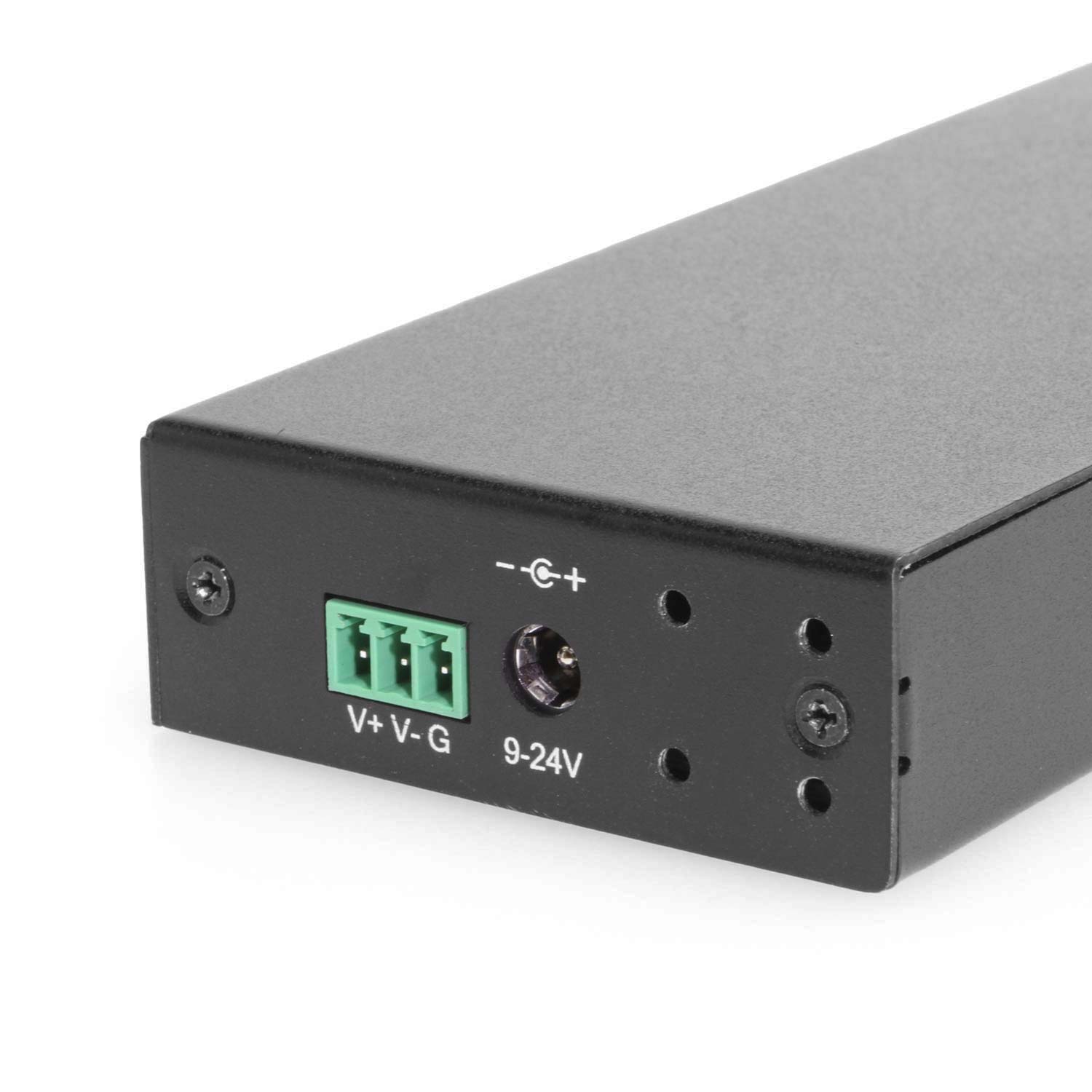

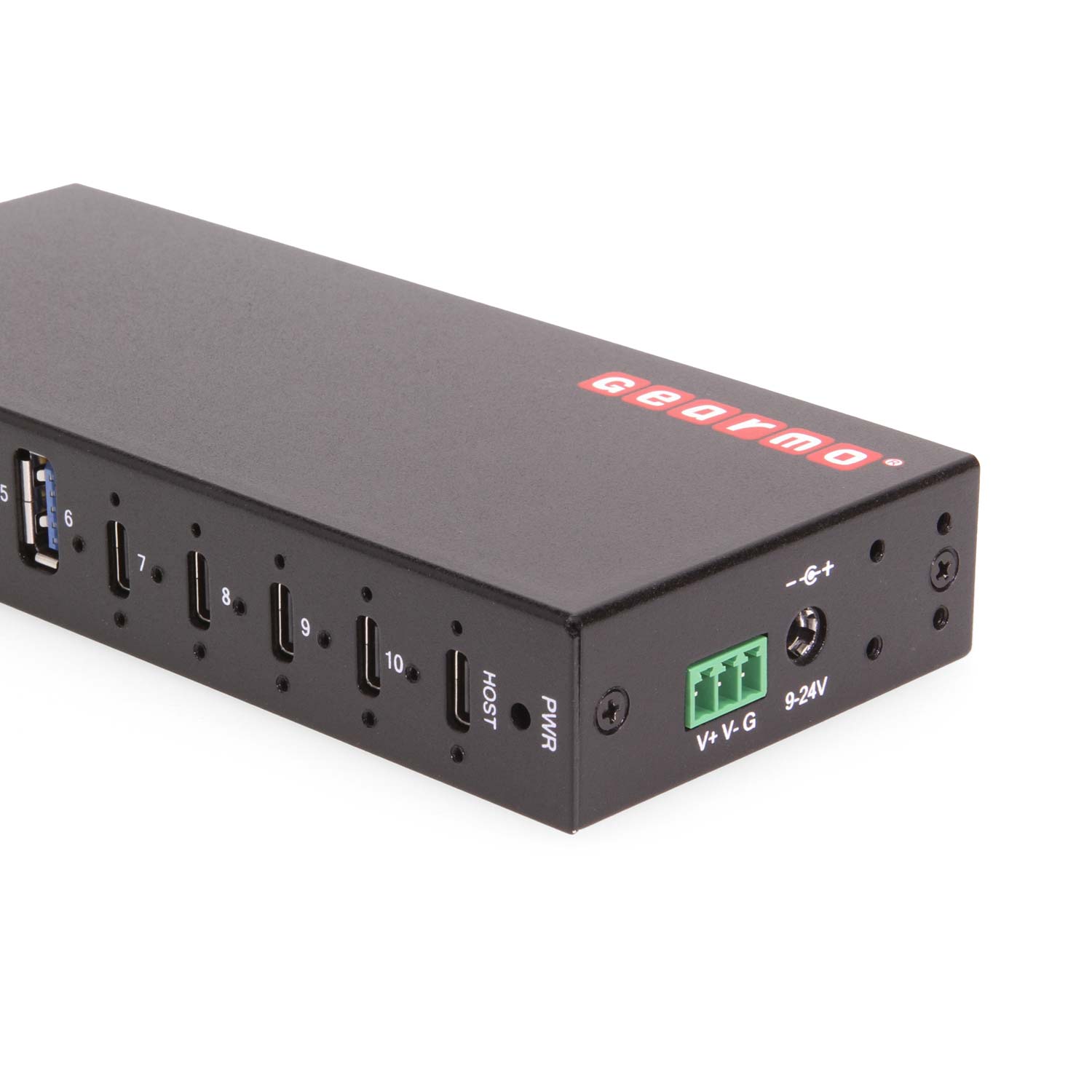

- Flexible Power: Power your way with a wide input voltage range of 9 ~24V DC. Power either via the included DC Barrel power supply or through a 3-Pin Terminal Block.
- Lightning Fast Data Transfers: Experience fast data transfer rates with USB Type-C ports offering 10Gbps and USB Type-A ports offering 5Gbps.
- Upstream: USB Type-C (Screw-Locking)
- Downstream: 6 USB Type-A, 4x USB Type-C (Screw-Locking)
- Power Input: 3-Pin Terminal Block, DC Barrel

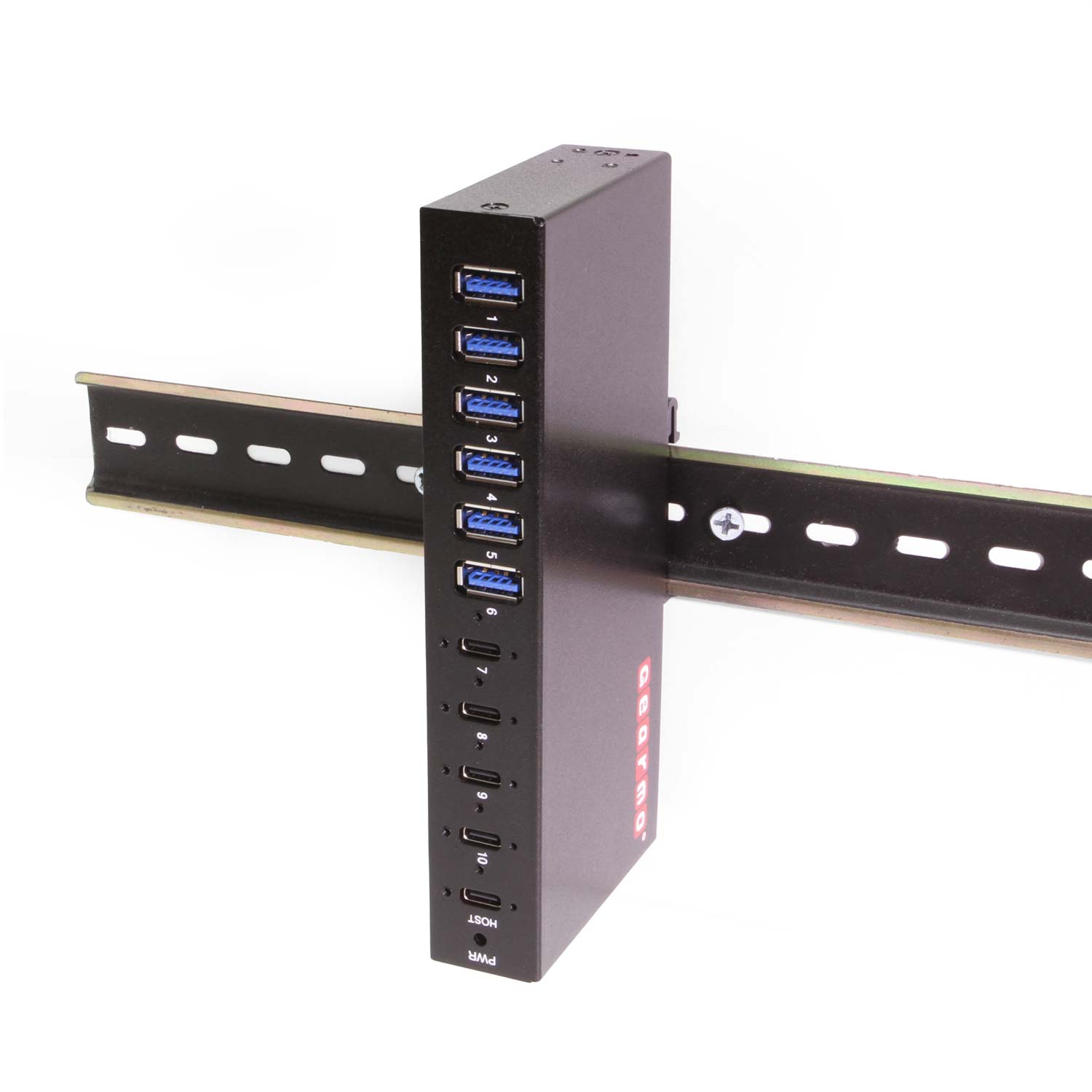

- Mounting Styles: Surface, Wall, and DIN-Rail
Compatibility
Product Documentation & Drivers
10-Port USB 3.2 Gen 2 Hub - 6 Type-A Ports, 4 Type-C Ports, & ESD Protection
Compatibility
Documentation

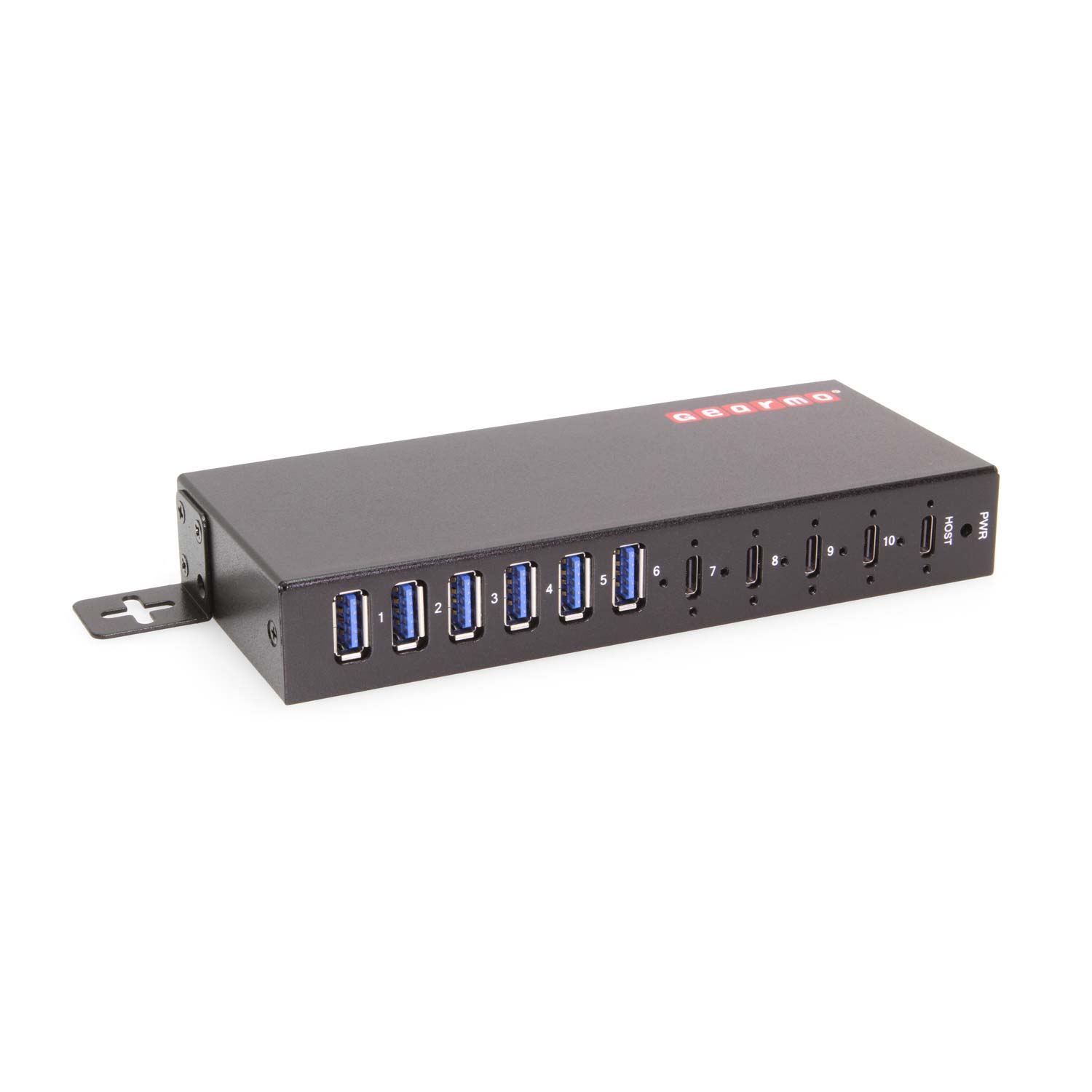

The GM-HU310CA Gearmo USB 3.2 Gen 2 hub is an industrial metal hub with 4 downstream USB Type-C ports and 6 downstream USB Type-A port. All ports, both downstream and upstream are conveniently located on the front facing panel. The GM-HU310CA USB 3.2 Gen 2 hub includes mounting option hardware for both surface and DIN-Rail mounting. Compliant with USB 3.2 Gen 1 and Gen 2 standards, data speeds up to 10Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.
Features:
- Adds 4 3.2 Gen 2 compliant USB Type-C ports & 6 3.2 Gen 1 USB Type-A port
- USB Type-A ports offer 5Gbps data transfer rate, USB Type-C ports offer 10Gbps data transfer rate
- Output: 2x USB-C with each 2.4A, 4x USB-A with each 1A, 1x USB-A with 2.4A, total 56W max

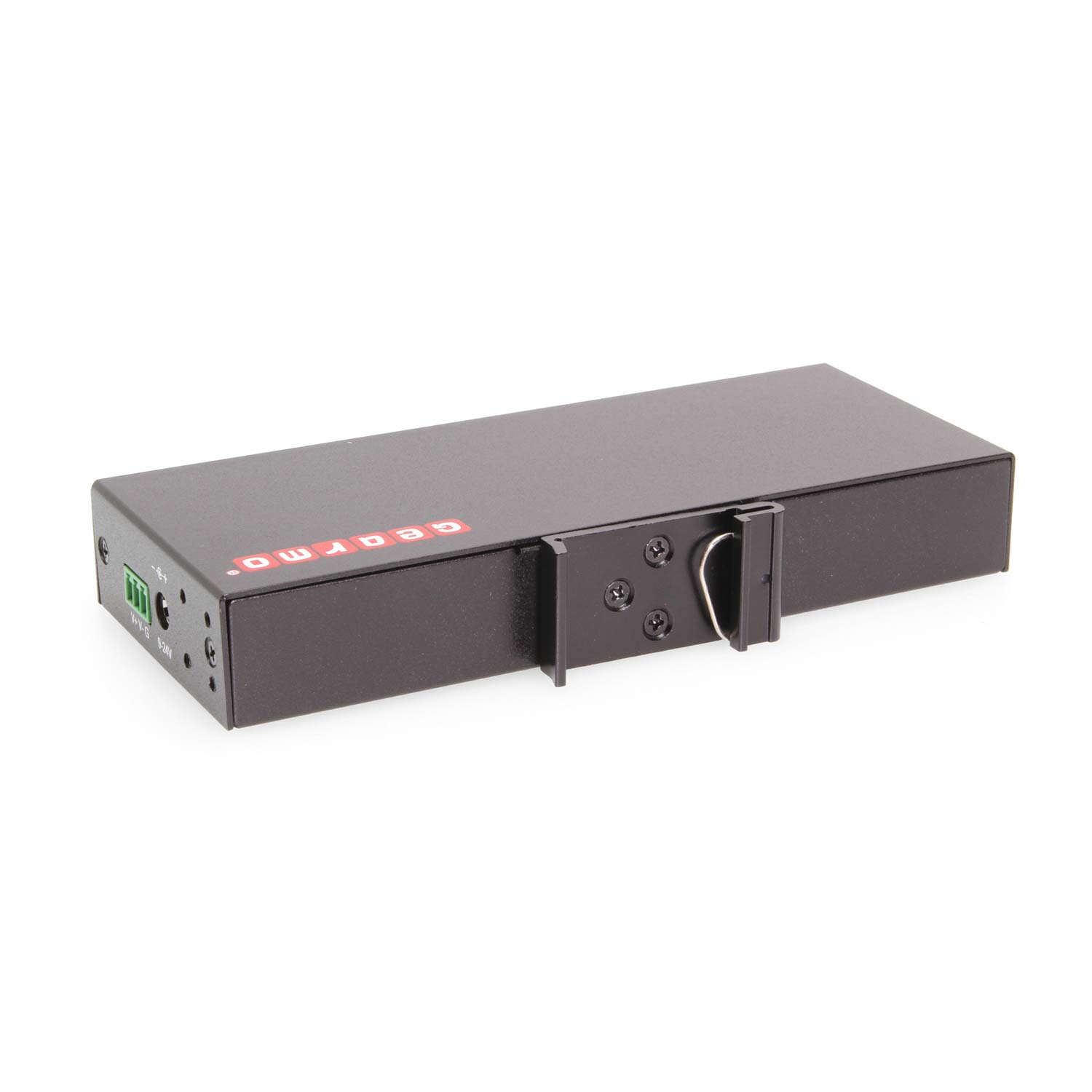

- Rugged metal chassis with surface & DIN Rail mount support
- 9~24V DC power input with an included DC Barrel power supply
- LED indicators for each port to show connection confirmation
- Screw-locking ports
- Upstream USB Type-C port
- 15kV ESD protection for all USB ports

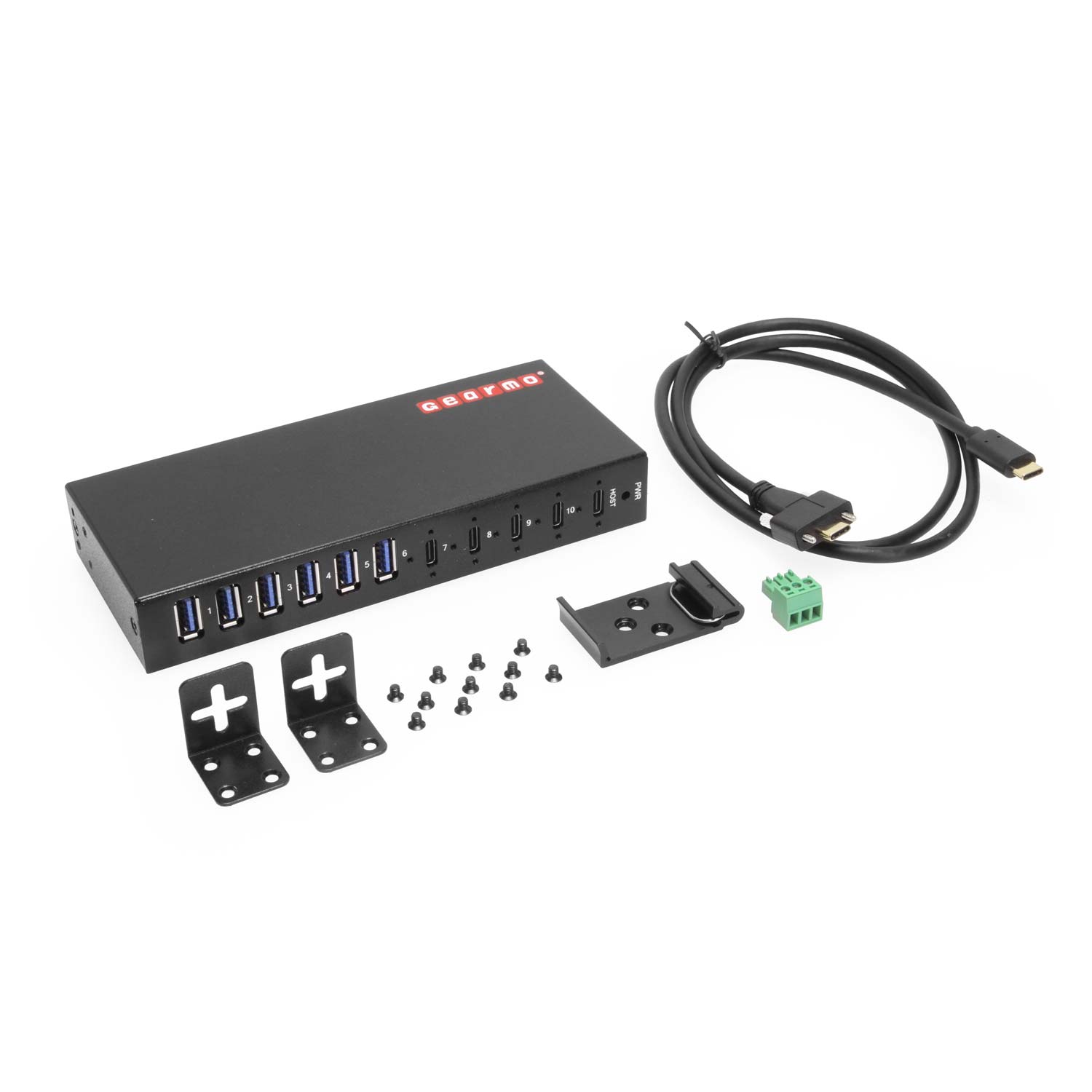

Package Contents:
- Industrial 10-Port USB 3.2 Gen Type-C & A Industrial Hub
- User Manual
- USB Type-C to Type-C Screw-Locking Cable
- DIN-Rail & Wall Mounting Kit
- 3-Pin Terminal Block
- Screw Package
Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.
Specifications
| Manufacturer: | Gearmo | Warranty: | 1 Year | Availability: | Available |
| Barcode: | 045079164406 | Ship Weight: | 1.10 | Condition: | New |
| Part Number: | GM-HU310CA | Color: | Black | Length/Size: | -- |
| USB Spec: | USB 3.2 Gen 2 | Max Data Rate: | 10 Gbps | Input Voltage: | 9 ~ 24V DC |
| Upstream Port: | USB 3.2G1 / 3.0 Type-C Female | Downstream Port(s): | 4 x Type C USB 3.2 G2 / 3.0 6 x Type A USB 3.2 G1 / 3.0 | Screw Lock Compatible: |
Yes |
Specifications
| Manufacturer: | Gearmo |
| Barcode: | 045079164406 |
| Part Number: | GM-HU310CA |
| Warranty: | 1 Year |
| Ship Weight: | 1.10 |
| Color: | Black |
| Availability: | Available |
| Condition: | New |
| USB Spec: | USB 3.2 Gen 2 |
| Max Data Rate: | 10 Gbps |
| Input Voltage: | 9 ~ 24V DC |
| Upstream Port: | USB 3.2G1 / 3.0 Type-C Female |
| Downstream Port(s): | 4 x Type C USB 3.2 G2 / 3.0 6 x Type A USB 3.2 G1 / 3.0 |
| Screw Lock Compatible: |
Yes |
